Overview

• Don't we already deploy Velociraptor in the cloud?
• Why do we mean by cloud native Velociraptor?

Cloud Velociraptor is mainly about Scalability and Cloud Native technologies.

• Move away from local file storage
• An experimental project to explore future directions.
• NOT a replacement for Velociraptor

Velociraptor's design goals

Velociraptor was designed to be easy and cheap to deploy to smaller scale organizations.

• Design goal was 10-15k endpoints.
• No external dependencies makes it easy to deploy.
• Using local file storage is cheaper and easier.
• Mainly catering for ephemeral consultancy type deployments.

New use cases!

Velociraptor has grown a lot in the past few years and it is now an enterprise grade application.

• Permanent monitoring and response solution.
• Large number of endpoints
• Multi-Tennancy is important for large deployments.
• Needs to be horizontally scalable!

Horizontally scaling means deployment size can change quickly balancing cost and capacity dynamically.

Take a trip down memory lane...

To understand where we are headed we should look at the history of Velociraptor.

History of Velociraptor

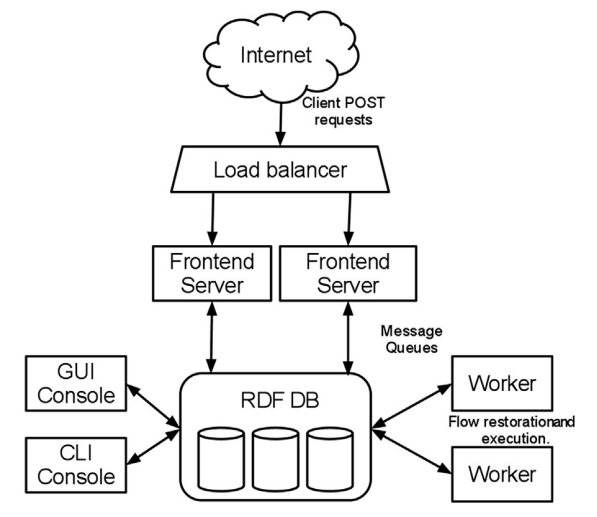

Google GRR was the first large scale hunting platform but (at the time) had issues with performance

• Written in a slow language
• A lot of work done server side
• Extensive client data model
• Cloud first architecture - worker, frontend, GUI
• Uses a database to store bulk data

Velociraptor was born!

Velociraptor was designed to address some of the problems with earlier systems.

• Written in a fast and efficient language
• Designed for a small deployment (<10k endpoints)
• Query language allows the server to be very simple
• No inherent data model - Schema-less
• Easy to deploy
• File storage backend

Going small to go big!!

By restricting our goals to a small scale deployment we can really simplify the whole design!

• Using file storage is really really fast!
• Throwing away the data model makes everything very efficient!
• Monolithic binary makes deployment really simple!

But we want to go bigger!

Single server limits reached at about 20k endpoints. What are the limiting factors?

• TLS encryption is CPU intensive
• IO bandwidth is saturated
• GUI can consume a lot of resources because it runs notebook queries.

Multi Frontend Velociraptor

To scale larger than one server we support multi-frontend architecture.

• Retain the Everything is a file philosophy: Uses distributed filesystem (EFS)
• Multiple servers in a Master-Minion architecture
• Message passing between servers ensures coherency.
• Still no additional dependency on cloud infrastructure

Cloud technology introduce a lot of IO latency challenges. We have MemcacheFileDataStore, RemoteDatastore etc.

Velociraptor in the cloud

To scale even more we need to replace the backend with cloud centric services.

• Horizontally auto-scale servers
• Use cloud managed storage
• Remove need for state on the server
• Can we use a database backed?

This sounds familiar... Are we going back full circle?

Not for everyone! More complexity and cost involved...

Organization of codebase

• We do not want to remove the current architecture!

• Cloud Velociraptor is a separate project with different goals!

• Previously code was abstracted at the storage layer allowing us to substiture EFS with attached storage but retaining all the code.

• Now code is abstracted at a higher layer we call services.

Velociraptor Services

Velociraptor services are interchangeable high level utilities that are used in the codebase. e.g.

• Indexing service: Used to search for clients.
• Label service: Used to label a client.
• ClientInfo service: Used to manage information about clients.
• Repository service: Used to manage artifacts
• Launcher service: Used to compile and launch collections

Velociraptor Services

Having high level services allows us to swap implementations freely and compose Velociraptor around different backend architectures

• This is a much more flexible abstraction than around data storage alone.
• Allows us to use a separate project to manage different implementations
• Much safer to experiment with different compositions of services.

Cloud Velociraptor

A new experimental GitHub Project https://github.com/Velocidex/cloudvelo

• Uses S3 for bulk storage
• Opensearch for structured storage
• Stateless servers (can be horizontally scaled)
• Not all features are possible in this architecture.

Cloud Architecture

Cloud Architecture

• Clients connect to a stateless frontend with an ingestor
• The ingestor writes the data in S3 or Opensearch
• The GUI runs in a stateless server
• The foreman is a batch processing job - schedules hunts, updates client event queries.

Demo Time

Current limitations

The Cloud Velociraptor implementation has some limitations currently (but they might be removed in future)

• Clients are currently polling.
• Missing notifications so updates are slower.
• Opensearch backend is much slower than attached storage!
• More expensive and complex to maintain because we have more moving pieces...

Future improvements

• Potential performance improvements through better schema / OpenSearch optimizations
• Currently we only use OpenSearch as a simple database - maybe a more performant database?
• Currently no server event monitoring!
• Will remain a separate project - an alternative to the standard Velociraptor...

Conclusions

• Velociraptor in the cloud is an alternative Velociraptor.
• We hope it can scale to much larger deployment sizes.
• Use as a test case for further architectural experiments.
